Zumo 550 spliced into Vision Speaker system
Author: northeastleds (Show all albums)

Show Newest Photos First | Show Oldest Photos First7 Photos - Page : [1]

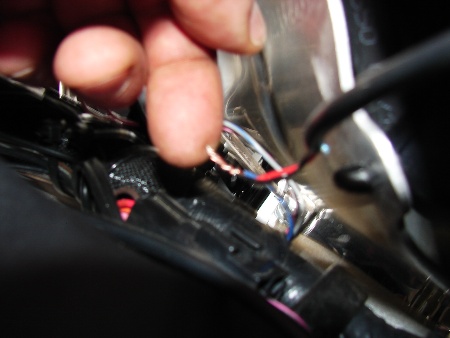

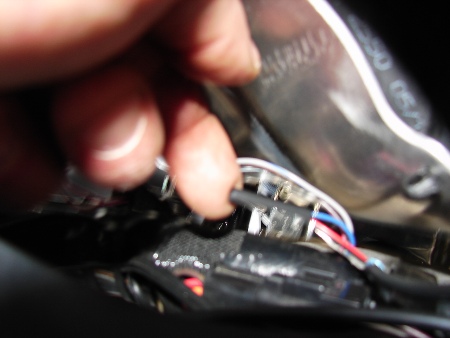

5- Final product. Thank you Spock for the directions :)

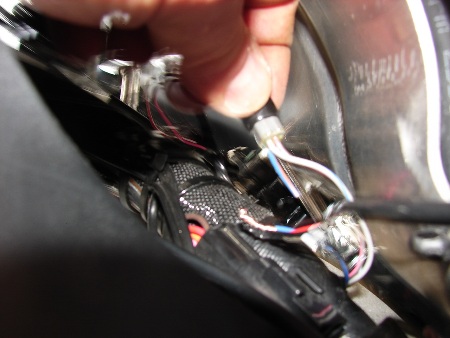

4- You don't have to but I did. I heat shrinked the other end of the Orange/blue stripe wire to the already heat shrinked connection. I did not want a bare wire dangling so I heat shrinked it. Even though it looks like 1 connection, they are NOT connected together by wires (only by heat shrink)

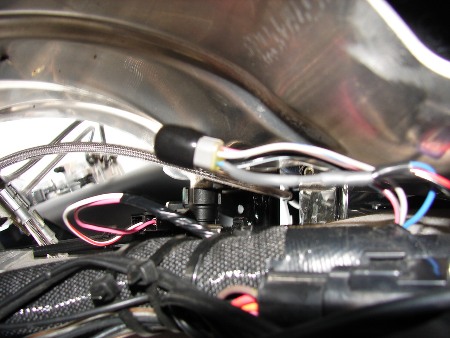

3- Heat Shrink the connections

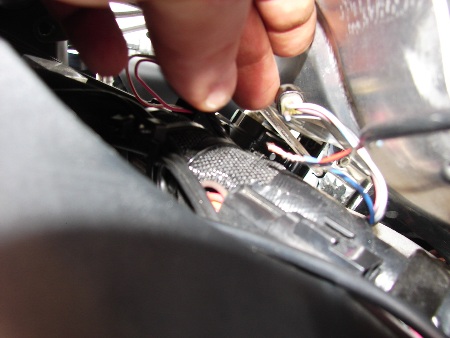

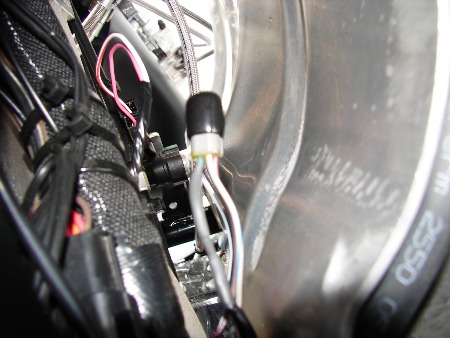

2- You splice the speaker wires coming from the zumo into the Orange/Blue stripe of the wires on the right side of the bike (coming off the main wiring harness)

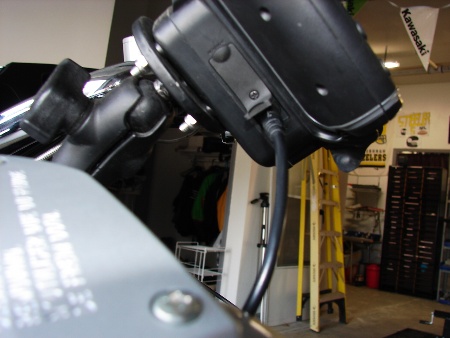

1- This is the Audio wire connected to the Zumo 550. You can get a right angle wire but I used what I had.
